Cost-effective Excavator bucket collar bush/Cross oil deep groove steel bearing bushing /cylindrical lining export various sizes

Cost-effective Excavator bucket collar bush/Cross oil deep groove steel bearing bushing /cylindrical lining export various sizes Featured Image
  • Cost-effective Excavator bucket collar bush/Cross oil deep groove steel bearing bushing /cylindrical lining export various sizes
  • Cost-effective Excavator bucket collar bush/Cross oil deep groove steel bearing bushing /cylindrical lining export various sizes
  • Cost-effective Excavator bucket collar bush/Cross oil deep groove steel bearing bushing /cylindrical lining export various sizes
  • Cost-effective Excavator bucket collar bush/Cross oil deep groove steel bearing bushing /cylindrical lining export various sizes
  • Cost-effective Excavator bucket collar bush/Cross oil deep groove steel bearing bushing /cylindrical lining export various sizes
  • Cost-effective Excavator bucket collar bush/Cross oil deep groove steel bearing bushing /cylindrical lining export various sizes

Short Description:

Products information.   product name: Excavator Bushing.Cross oil deep groove steel bearing bushing.dotted bucket bush. Types: Sleeve Bushing,Flange,Washer material: 40Cr,20CrMnTi.45Cr, 35GrMo,42GrMo. color: silver, black, white,Red.etc. Surface Hardness: HRC 48-52HRC55~60HRC in depth of1.5~3mm Condition: New, 100%new Applicable Industries: Building Material Shops.Machinery Repair Shops.Manufacturing Plant. Construction works. excavator repair After Warranty Service: 1.Vide...


Product Detail

Product Tags

Products information.

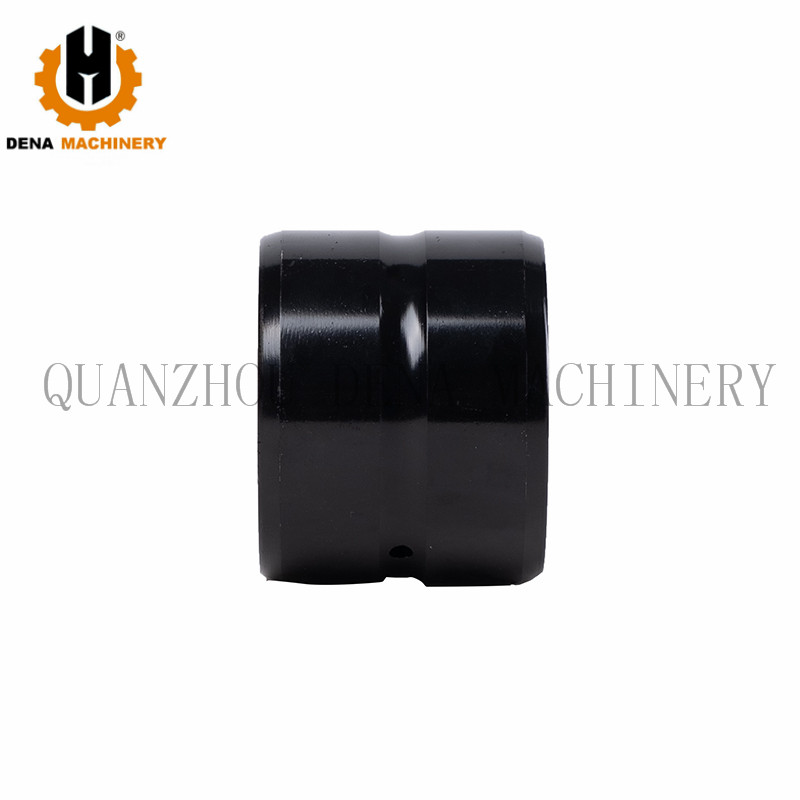

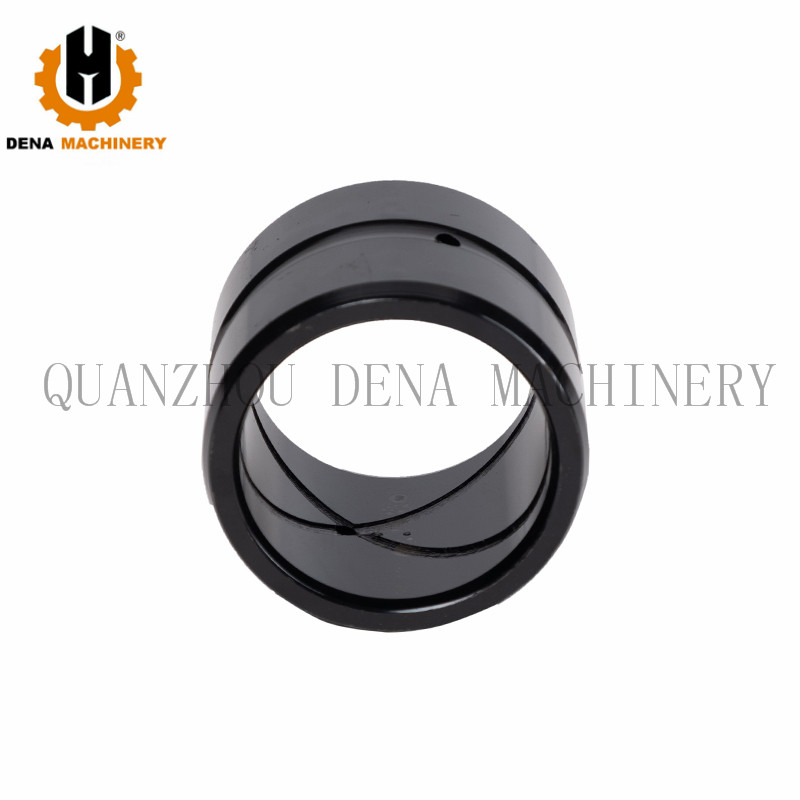

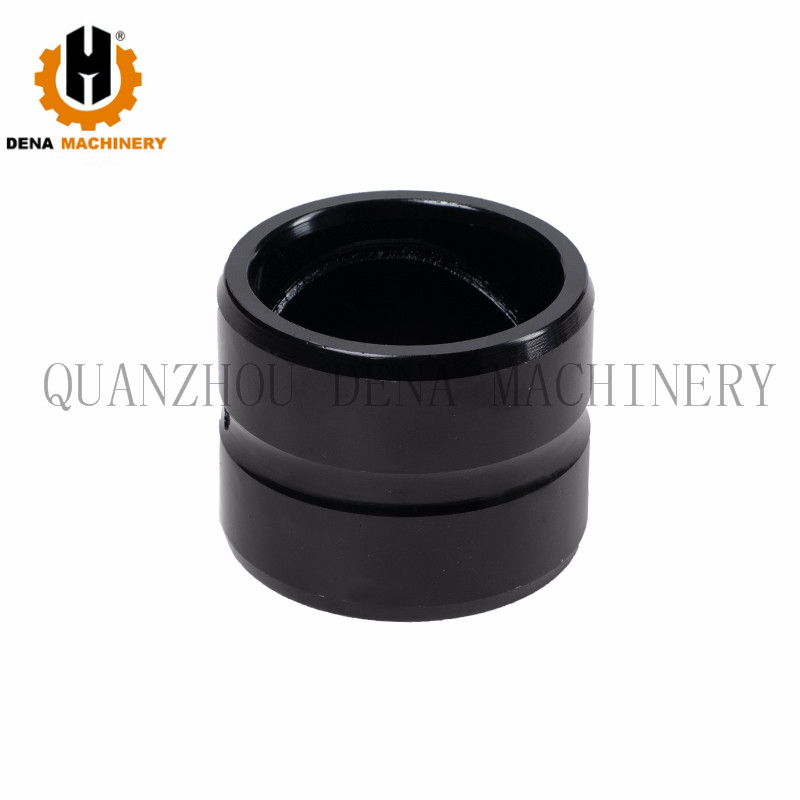

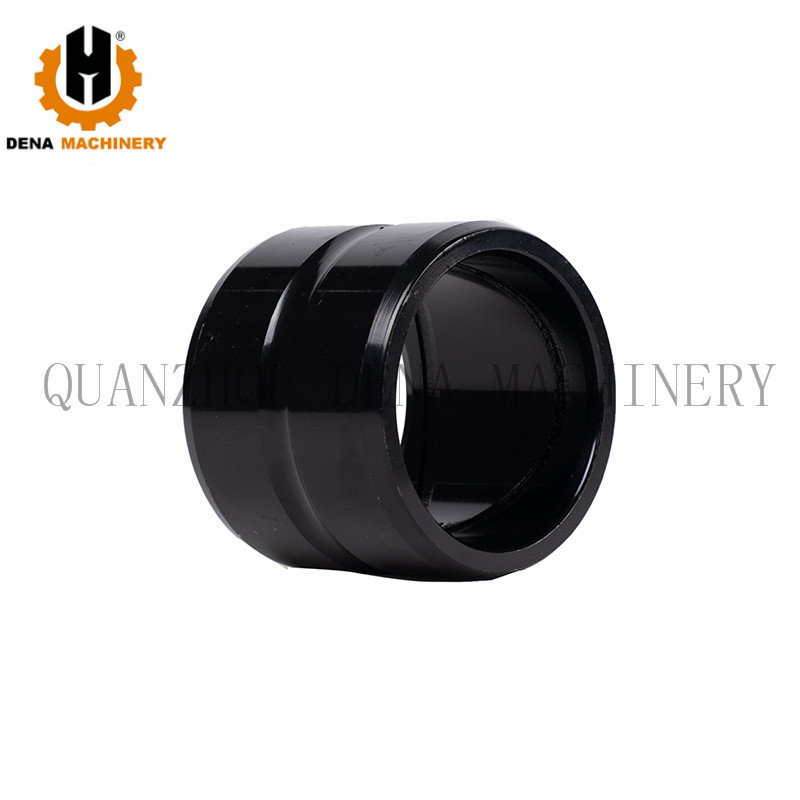

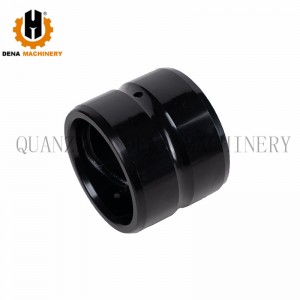

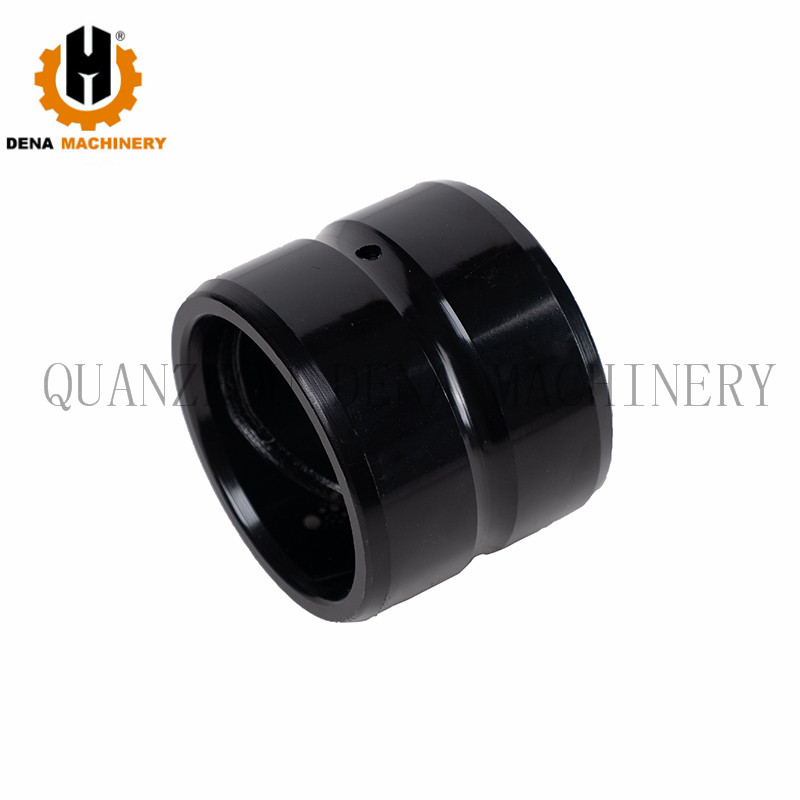

product name: Excavator Bushing.Cross oil deep groove steel bearing bushing.dotted bucket bush.
Types: Sleeve Bushing,Flange,Washer
material: 40Cr,20CrMnTi.45Cr, 35GrMo,42GrMo.
color: silver, black, white,Red.etc.
Surface Hardness: HRC 48-52HRC55~60HRC in depth of1.5~3mm
Condition: New, 100%new
Applicable Industries: Building Material Shops.Machinery Repair Shops.Manufacturing Plant.

Construction works.

excavator repair
After Warranty Service:

1.Video technical support.

2.Online support.
Place of Origin:

FuJian.CHINA
Brand Name:

HLT. Or According to customer needs.
Application:

Crawler Excavator.

Wheel Excavator. Etc.

Excavator Attachment.

CAT.VOLVO.KOMATSU.Hydraulic.HITACHI

KOBELCO.SUMITOMO.DOOSAN.etc.Excavator
Delivery:

15-30 Days.
Size:

Custom Size
Certification:

ISO9001
Process:

1.NC machining semi-finished products

2.Dig the inside oil groove

3.Drill the hole

4.Remove drilling burr

5.Heat treatment

6.Tempering

7.Sandblasting

8.Rough grinding the outside twice

9.Precise grinding to finished size

10.Finished products
Package:

1.Brush oil and spray anti-rust oil on the bushing surface

2.Cover with plastic film.

3.Plastic machine.

4.Packed in a carton.

From the forging raw materia to the finished bucket bush,we have the series strict process.the CNC lathe.the ordinatry lathe ,the oil groove .the broaching,the heat treatment,the quenching and tempering.the grindering,the sand blasting.the phosphating.and all these steps are done by our profesional worker.therefore we guarantee the quality about the bucket bush we produce.

size chart.

Size Size Size Size Size Size Size
25*35*35 30x40x30 60x80x65 80x95x89 90x115x90 105x125x160 125x150x120
30*40*40 30x40x45 60x80x70 80x95x90 90x115x100 105x130x100 125x150x140
30*50*30 30x40x55 60x80x80 80x95x95 90x116x90 105x130x110 125x150x150
30*50*40 32x37x35 60x85x70 80x95x100 90x116x100 110x125x70 130x150x120
35*45*40 32x40x35 63x83x90 80x95x105 90x120x90 110x125x90 130x150x130
35*45*45 35x45x35 65x75x60 80x95x110 90x120x100 110x125x100 130x150x140
55*70*40 35x45x60 65x75x65 80x95x120 90x120x105 110x125x110 130x150x150
55*70*65 35/50/60 65x75x70 80x95x125 90x120x110 110x125x115 130x154x130
55*70*66 38x45x70 65x75x80 80x95x130 90x120x113 110x125x120 130x154x140
55*70*70 40x50x40 65x80x50 80x96x80 90x120x120 110x125x130 130x155x130
55*70*80 40x50x45 65x80x60 80x96x90 90x120x126 110x125x140 130x155x140
55*70*85 40x50x47 65x80x65 80x97x90 90x121x105 110x125x155 130x160x100

Size

Size

Size

Size

Size

Size

Size
70*90*110 45x60x45 65x90x80 80x110x90 95x110x110 110x135x110 140x175x150
70*100*75 45x60x50 70x80x70 80x110x93 95x110x115 110x135x120 150x170x150
70*100*85 45x60x60 70x80x80 80x115x90 100x110x100 110x135x130 150x175x165
70*100*90 48x54x68 70x80x90 80x120x72 100x115x52 110x135x140 150x180x150
70*100*95 50x60x40 70x85x70 80x120x80 100x115x60 110x135x160 150x180x180
71*86*40 50x60x45 70x85x80 80x120x90 100x115x70 110x140x100 160x180x160
71*86*55 50x60x50 70x85x85 85x95x100 100x115x80 110x140x110 170x190x150
71*86*65 50x60x60 70x85x90 85x95x110 100x115x90 110x140x120 170x190x170
71*86*75 50x60x70 70x85x100 85x100x80 100x115x95 110x140x140 170x200x150

Size

Size

Size

Size

Size

Size

Size
55*75*50 40x50x50 65x80x70 80x100x70 90x122x105 110x130x80 130x160x140
55*75*75 40x50x60 65x80x75 80x100x80 90x125x90 110x130x85 130x160x150
60*75*55 40x55x60 65x80x80 80x100x90 90x125x105 110x130x100 135x160x140
60*75*85 45x55x40 65x80x90 80x100x105 90x130x90 110x130x110 140x160x130
60*75*95 45x55x42 65x80x100 80x100x110 90x130x100 110x130x120 140x160x140
60*80*50 45x55x45 65x85x50 80x105x80 90x130x105 110x130x125 140x165x140
70*85*78 45x55x48 65x85x65 80x105x90 95x110x80 110x130x130 140x165x150
70*85*146 45x55x50 65x85x70 80x110x70 95x110x90 110x130x133 140x170x120
70*86*95 45x55x55 65x85x80 80x110x80 95x110x95 110x130x140 140x170x140
70*90*85 45x55x60 65x85x90 80x110x85 95x110x100 110x135x100 140x170x150
