Dynapac Road Roller Gearbox 4700390604 Model CC424HF Drum Gear

Short Description:

Details table. Part Name Travel Gearbox /Swing Gearbox .Sun Gear. Planet Gear .Planet Carrier assy Sun Gear Shaft etc.. Condition New Model NO DYNAPAC CC424HF Size roller Material Processing Forging+Finish Turning+Hobbing+Carburizing and Quenching+Hobbing+Internal Grinding+Tooth Grinding Heat Treatment Annealing, Normalizing, Q&T, Induction Hardening.High Frenquency Quenching and Hard Teeth Flame,Nitriding Carburizing Size Products can be customized. Package According to...


Product Detail

Product Tags

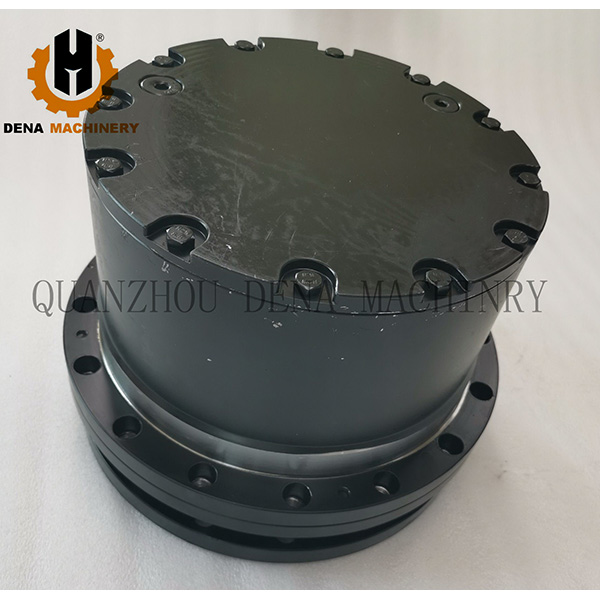

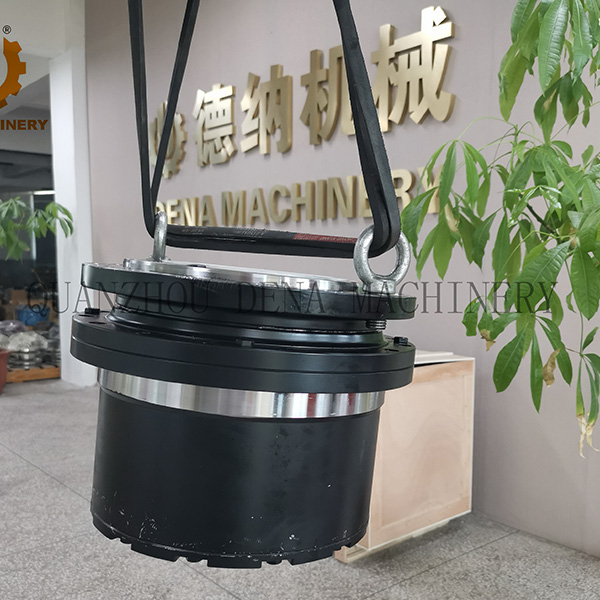

Dynapac Road Roller Gearbox 4700390604 Model CC424HF Drum Gear

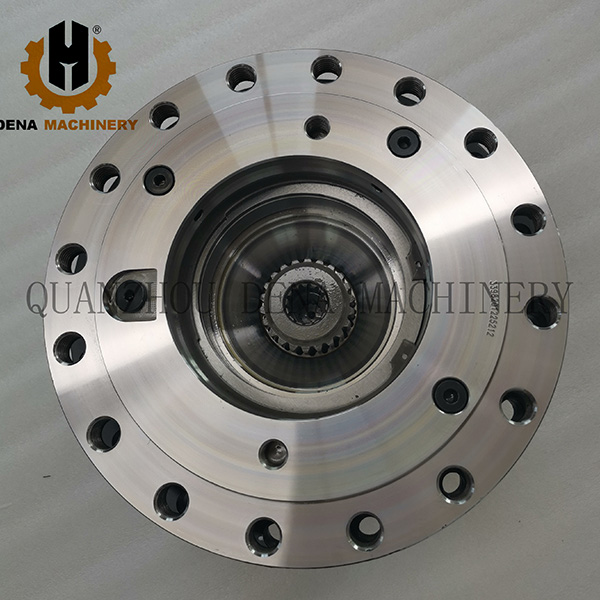

Dynapac Road Roller Gearbox 4700390604 Model CC424HF Drum Gear2

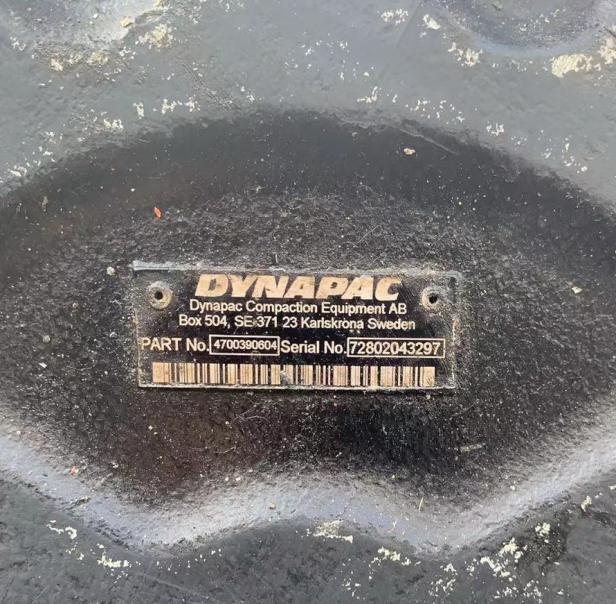

Dynapac Road Roller Gearbox 4700390604 Model CC424HF Drum Gear3

Details table.

Part Name Travel Gearbox /Swing Gearbox .Sun Gear. Planet Gear .Planet Carrier assy Sun Gear Shaft etc..
Condition New

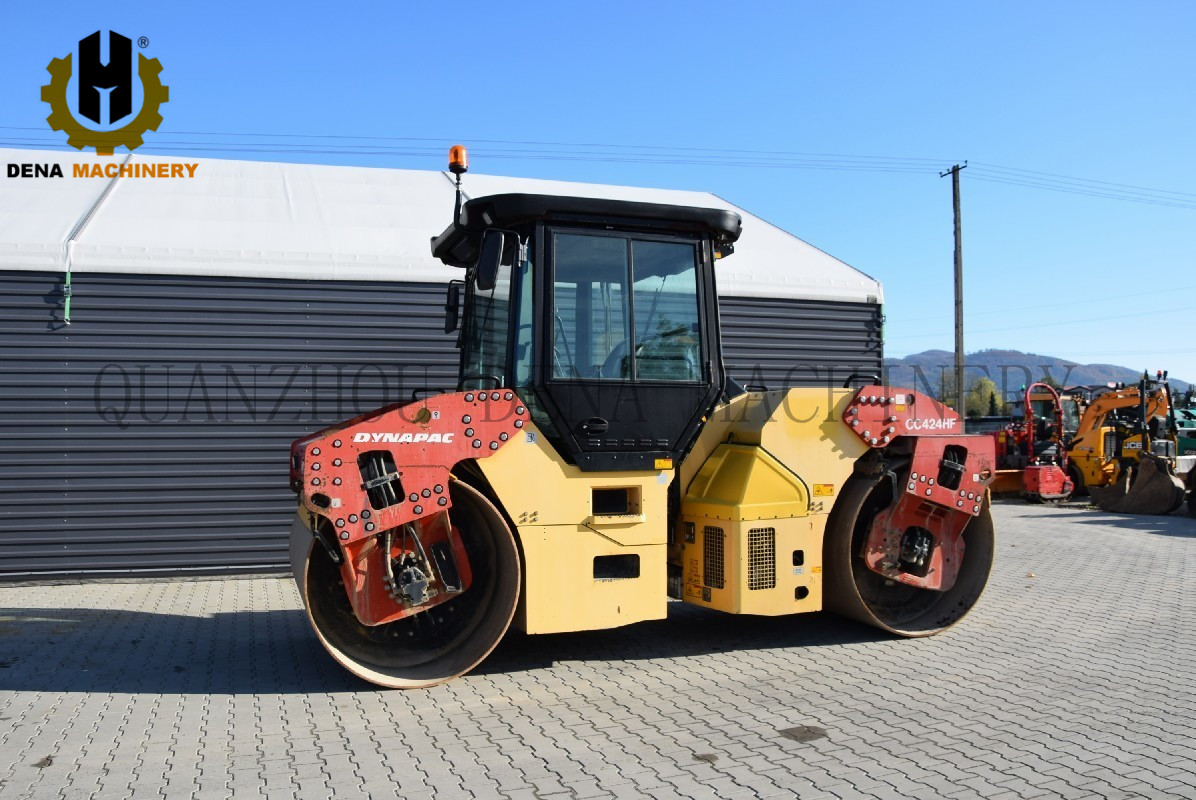

Model NO DYNAPAC CC424HF
Size roller
Material Processing Forging+Finish Turning+Hobbing+Carburizing and Quenching+Hobbing+Internal
Grinding+Tooth Grinding
Heat Treatment Annealing, Normalizing, Q&T, Induction Hardening.High Frenquency Quenching
and Hard Teeth Flame,Nitriding Carburizing
Size Products can be customized.

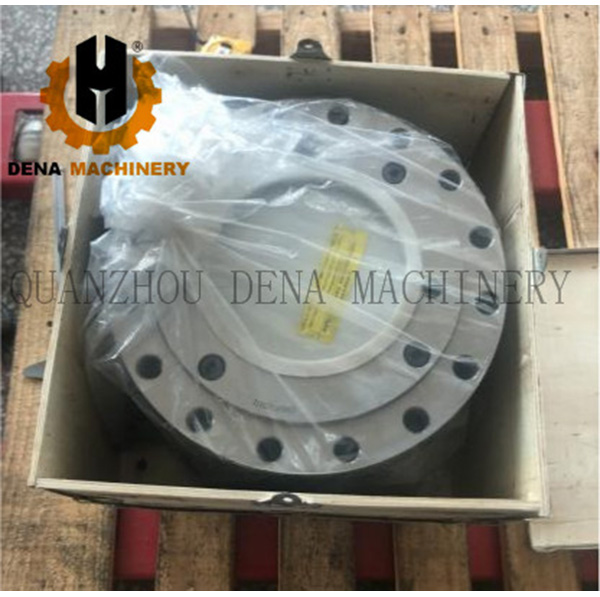

Package According to customer's request
Apperance No Crumbling, Cracks, Exfoliation, Voids, Metal Pitting and Other Defects
Shape of Teeth Spur gear, Helical gear, Straight bevel gear, Spiral bevel gear,Worm and worm wheel, Custom made
Surface Treatment spray painting,Electrophoresis.etc
Inspection Raw material inspection, UT,physical property test,dimension inspect
Main Machines NC Gear Hobbing Machines, NC Gear Shapers(Gealson, Moude), NC lathe,
NC gear Shaving machines, NC gear milling, Nc gear grinding
Machines and many kinds of gear related machines.
Shipping 1) By express(DHL, UPS, TNT, FedEx)
2) By air
3) By sea
4) As per customized specifications

Note.

Please refer to DYNAPAC Parts Catalog/Service Manual to check if your machine is suitable. If you are not sure about the suitability, you can provide us with the serial number of the DYNAPAC  machine by email or phone to check them.

4812158763 Planet gear 4700950495 Plug
    4700950527 Inner disc
4812158764 Sun gear 4700950480 Outer disc
4812160391 Shaft nut   Pressure spring
  Planet carrier 4700950529 Supporting ring
  Cover 4700950530 Piston seal
  Cylindrical roller 4700950531 Supporting ring
4700950520 Cylindrical roller bearing 4700950532 Piston seal
4700950521 Cylindrical roller bearing   Plug connector see engine Gr. 9
4700950522 Ball bearing 4700950493 Plug
4700950523 O-ring 4700950494 Seal ring
4700950524 Seal 4812161198 Spring dowel sleeve
4700950491 Plug 929651
4700950492 Seal ring 4700386272
  Screw D1703-M-EU32
4812158765 Ring gear 387936
4700950526 O-ring 373906
4812161168 Sun gear shaft 4700908786
4812161169 Drum flange 4700937175
  Spindle 385517
4812161164 Piston 936475
  Coupler 4700388223
  Spacer
  Limited slip disc
  Snap ring

About Us.

1

Quanzhou Dena Machinery Technology Co., Ltd.Is located in the cultural capital of East Asia.Which is one of the first pilot cities of "Made in China 2025".It is the starting point of the Maritime Silk road ----- Quanzhou, Fujian.

 Since its inception, the company has been innovating and developing.It has several advanced production lines, a number of senior engineers, professional technical managers.Besides, there is a sound quality management system.

 The company mainly produces various types of excavator travel reduction assy (final drive), swing reduction assy (swing device), gears, gear ring, swing shaft (shaft pinion), crankshafts, pin, carriers, carrier assembly, pump shaft, motor cases, bearings, housing, RV gear assy etc.

  The prupose of company is "customers first, reputation first, quality-oriented, keep improving, service first".We got well received by friends and customers.And we sincerely welcome regular and new customers come to visit our company and guidence.We are looking forward to creating a better future with you.

FAQ.

Q: When will ship my order?

A:Once we get confirmation of payment, we will try our best to ship order within 24 hours.

Q: Which shipping term you can supply?
A:By sea, air, express ( DHL, Fedex, TNT, UPS, EMS)

Q: How long does it takes to my address?
A:The Normal delivery time is 4-7 days, depending on which country you are in.

Q: How can I trace my order?
A:We will send you the tracking number once the goods send out.

Q: If I am not satisfied with the products, can I returns goods?
A:Yes, we offer exchange and repair service under warranty. Please contact us before you return.
