Bucket Bushing |
Material (customizable) |
35CrMo |
40cr |
45#steel |
DENA MACHINERY
|
Type |
|
|
|
||
Type name |
dotted bucket bush |
single flange bucket bushing |
step collar bush |
||
colour |
customizable |
Silver |
Silver |
Silver |
We can put your own logo on the bushings and boxes.
dotted bucket bush. single flange bucket bushing. step collar bush.
Details table.
Application: |
Crawler Excavator,Construction Machinery,Wheel excavator. |
Customized: |
Customized,Customized according to customer drawings. |
Material: |
40cr,45#steel, 35CrMo, 40CrMo,Or according to customer needs. |
Surface Hardness: |
HRC 48-52,55-62.Or as requirement |
Surface treatment: |
Heat treatment,Carbonization,Regular,Precise Grinding,Chroming,etc. |
Color: |
Black, White , Red, Yellow, According to customer needs. |
BRAND: |
OEM/ODM. |
MOQ: |
30piece or 1 piece in stock. |
Delivery Time: |
Within 15-30 days after contract established. |
Transport Package: |
Carton,Anti-Rust Paper,Wooden Box. |
Supply Ability: |
100000 Piece/Pieces per Month. |
Suitable machine: |
Volvo, Caterpillar, Komatsu, JCB,Hitachi,Daewoo Doosan,KOBELCO... |
Size: |
Many kinds.According to customer needs. |
Product Description.

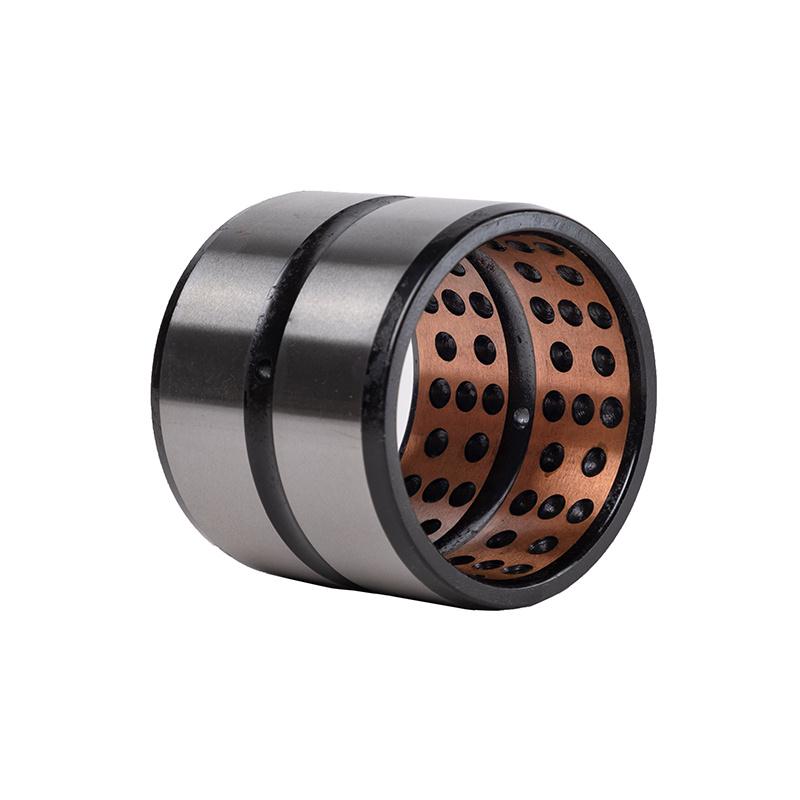

The dotted bushing is the same as its name. There are many small recesses on the inner wall of the bushing to facilitate the addition of lubricating oil to the bushing to improve work efficiency. Protect the bushing and bucket shaft to prevent the bucket shaft bushing from overheating and damage.
size chart.
Size | Size | Size | Size | Size | Size | Size |
25*35*35 | 30x40x30 | 60x80x65 | 80x95x89 | 90x115x90 | 105x125x160 | 125x150x120 |
30*40*40 | 30x40x45 | 60x80x70 | 80x95x90 | 90x115x100 | 105x130x100 | 125x150x140 |
30*50*30 | 30x40x55 | 60x80x80 | 80x95x95 | 90x116x90 | 105x130x110 | 125x150x150 |
30*50*40 | 32x37x35 | 60x85x70 | 80x95x100 | 90x116x100 | 110x125x70 | 130x150x120 |
35*45*40 | 32x40x35 | 63x83x90 | 80x95x105 | 90x120x90 | 110x125x90 | 130x150x130 |
35*45*45 | 35x45x35 | 65x75x60 | 80x95x110 | 90x120x100 | 110x125x100 | 130x150x140 |
55*70*40 | 35x45x60 | 65x75x65 | 80x95x120 | 90x120x105 | 110x125x110 | 130x150x150 |
55*70*65 | 35/50/60 | 65x75x70 | 80x95x125 | 90x120x110 | 110x125x115 | 130x154x130 |
55*70*66 | 38x45x70 | 65x75x80 | 80x95x130 | 90x120x113 | 110x125x120 | 130x154x140 |
55*70*70 | 40x50x40 | 65x80x50 | 80x96x80 | 90x120x120 | 110x125x130 | 130x155x130 |
55*70*80 | 40x50x45 | 65x80x60 | 80x96x90 | 90x120x126 | 110x125x140 | 130x155x140 |
55*70*85 | 40x50x47 | 65x80x65 | 80x97x90 | 90x121x105 | 110x125x155 | 130x160x100 |
Size |
Size |
Size |
Size |
Size |
Size |
Size |
70*90*110 | 45x60x45 | 65x90x80 | 80x110x90 | 95x110x110 | 110x135x110 | 140x175x150 |
70*100*75 | 45x60x50 | 70x80x70 | 80x110x93 | 95x110x115 | 110x135x120 | 150x170x150 |
70*100*85 | 45x60x60 | 70x80x80 | 80x115x90 | 100x110x100 | 110x135x130 | 150x175x165 |
70*100*90 | 48x54x68 | 70x80x90 | 80x120x72 | 100x115x52 | 110x135x140 | 150x180x150 |
70*100*95 | 50x60x40 | 70x85x70 | 80x120x80 | 100x115x60 | 110x135x160 | 150x180x180 |
71*86*40 | 50x60x45 | 70x85x80 | 80x120x90 | 100x115x70 | 110x140x100 | 160x180x160 |
71*86*55 | 50x60x50 | 70x85x85 | 85x95x100 | 100x115x80 | 110x140x110 | 170x190x150 |
71*86*65 | 50x60x60 | 70x85x90 | 85x95x110 | 100x115x90 | 110x140x120 | 170x190x170 |
71*86*75 | 50x60x70 | 70x85x100 | 85x100x80 | 100x115x95 | 110x140x140 | 170x200x150 |
Size |
Size |
Size |
Size |
Size |
Size |
Size |
55*75*50 | 40x50x50 | 65x80x70 | 80x100x70 | 90x122x105 | 110x130x80 | 130x160x140 |
55*75*75 | 40x50x60 | 65x80x75 | 80x100x80 | 90x125x90 | 110x130x85 | 130x160x150 |
60*75*55 | 40x55x60 | 65x80x80 | 80x100x90 | 90x125x105 | 110x130x100 | 135x160x140 |
60*75*85 | 45x55x40 | 65x80x90 | 80x100x105 | 90x130x90 | 110x130x110 | 140x160x130 |
60*75*95 | 45x55x42 | 65x80x100 | 80x100x110 | 90x130x100 | 110x130x120 | 140x160x140 |
60*80*50 | 45x55x45 | 65x85x50 | 80x105x80 | 90x130x105 | 110x130x125 | 140x165x140 |
70*85*78 | 45x55x48 | 65x85x65 | 80x105x90 | 95x110x80 | 110x130x130 | 140x165x150 |
70*85*146 | 45x55x50 | 65x85x70 | 80x110x70 | 95x110x90 | 110x130x133 | 140x170x120 |
70*86*95 | 45x55x55 | 65x85x80 | 80x110x80 | 95x110x95 | 110x130x140 | 140x170x140 |
70*90*85 | 45x55x60 | 65x85x90 | 80x110x85 | 95x110x100 | 110x135x100 | 140x170x150 |
Packaging pictures.
